How Satellites Actually See

AN ACCIDENTAL PRECEDENT

Landsat 1 launched with two instruments. The Return Beam Vidicon was the one everyone expected to matter: an analog television camera, built on 1960s weather-satellite technology, considered the primary sensor. A defective power-switching circuit shut it down days after launch. The Multispectral Scanner System, an experimental secondary instrument nobody had fully trusted yet, took over as the mission's only working camera, and in doing so, decided what Earth observation would look like for the next fifty years: digital, not analog.

MULTISPECTRAL

A pixel is really several separate measurements

The Multispectral Scanner recorded four bands at once, each a separate measurement of how much light bounced back at a specific wavelength. Healthy vegetation reflects strongly in near-infrared light and absorbs red, because chlorophyll absorption and leaf structure behave differently at those wavelengths. Water does close to the opposite, absorbing infrared and reflecting blue.

A single-band photograph cannot separate these materials reliably. A four-band scan, measured pixel by pixel, can. Modern instruments extended that insight rather than replacing it: Sentinel-2's imager carries 13 bands from about 443 to 2,190 nanometers, split unevenly across 10, 20, and 60-meter resolutions because different bands serve different purposes, and a band used only for atmospheric correction does not need the same detector geometry as one used to map a field.

The familiar indices come after the measurement, not instead of it. NDVI is not something a satellite senses directly. It is a ratio built from red and near-infrared reflectance after the fact, which means the compression can hide confounders such as soil background, canopy saturation, or viewing angle that the raw bands would have shown separately.

HYPERSPECTRAL

More bands, narrower bands, a different question entirely

Sentinel-2's 13 bands are wide enough to separate vegetation from water from bare soil, but too wide to say much about which specific mineral, pigment, or contaminant produced a given reflectance value. Hyperspectral instruments, also called imaging spectrometers, close that gap by measuring hundreds of narrow, contiguous bands instead of a dozen broad ones.

Germany's EnMAP satellite, launched in 2022, measures 224 usable bands across visible and infrared wavelengths at 30-meter resolution. Italy's PRISMA measures around 240. Where Sentinel-2's shortwave-infrared band tells you roughly how much water or clay is present, a comparable hyperspectral band can start to distinguish which clay mineral, because the full, nearly continuous reflectance curve carries information a handful of samples along it cannot.

The cost is data volume and processing complexity, which is why hyperspectral missions remain far less numerous than multispectral ones. Multispectral answers what kind of surface is this, broadly. Hyperspectral asks what exactly is this made of, at the price of an enormously larger dataset for the same patch of ground.

ACTIVE SENSING

One instrument sees regardless of weather or daylight

Every instrument described so far measures reflected sunlight, which means every one of them is blind at night and degraded under cloud. Synthetic Aperture Radar, SAR, solves both problems by not waiting for sunlight at all. It transmits its own radio signal toward the ground and measures what bounces back, using the satellite's own motion to synthesize an antenna far larger than the physical one it carries.

Sentinel-1 carries a C-band radar with four observation modes, trading resolution for coverage depending on the task: its finest mode resolves to about 5 meters, its widest covers a swath up to 400 kilometers. Because radio waves at this wavelength pass largely undisturbed through cloud, Sentinel-1 keeps collecting through storms that make optical imagery useless for days.

This is the closest Earth observation comes to a genuinely unmatched capability. Ground teams cannot map flood extent across a cloud-covered region overnight. Optical satellites cannot either. Radar can, which is why it became disaster response's default tool rather than a fair-weather curiosity.

FROM SIGNAL TO PICTURE

The rendered image is not the measurement

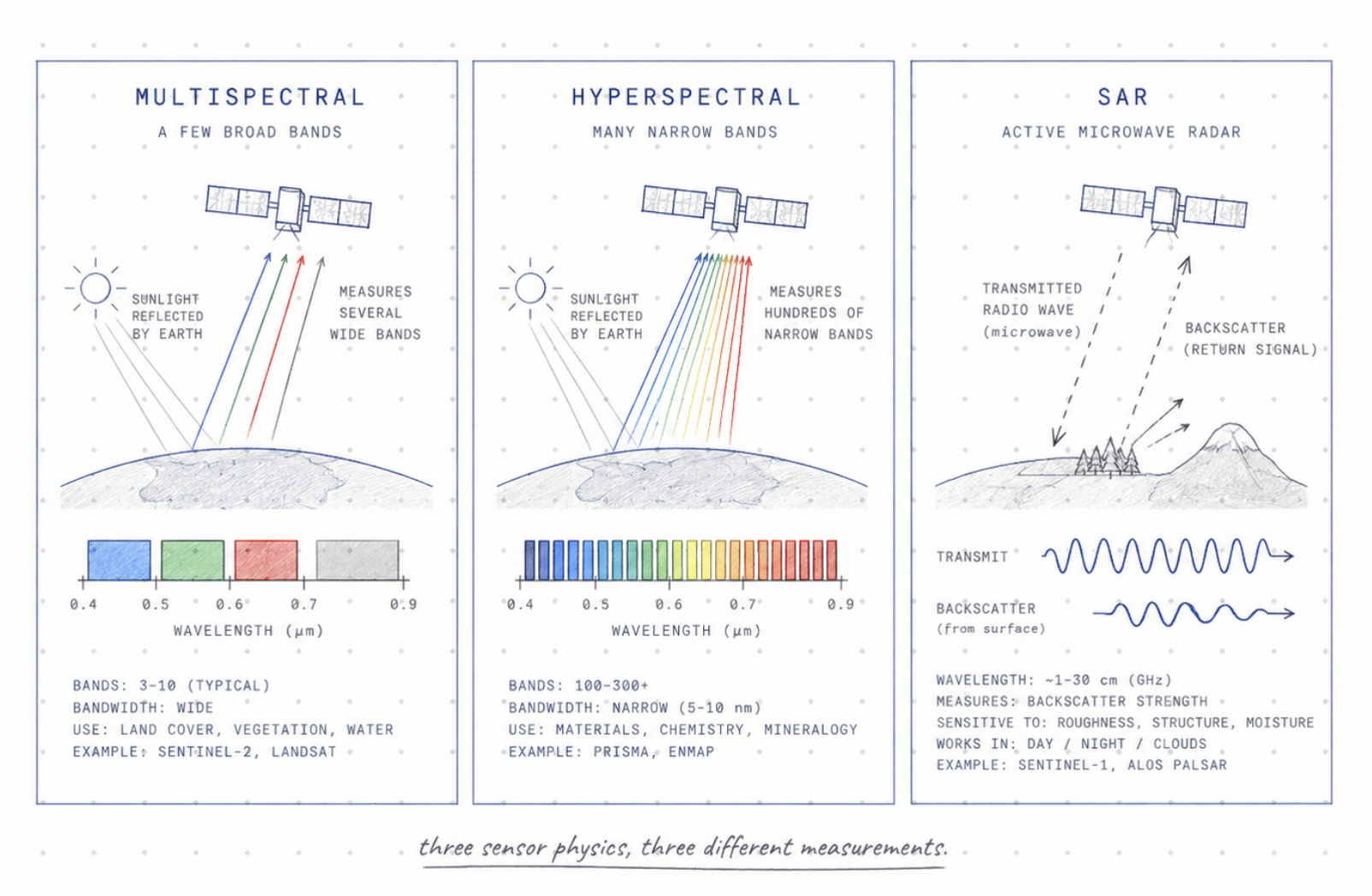

Multispectral reflectance, hyperspectral reflectance, and radar backscatter all get displayed as pictures on a screen, and that similarity can mislead. A radar measurement depends on surface roughness, moisture, and the angle it was viewed from. An optical measurement depends on illumination, atmosphere, and surface chemistry. The colors two instruments both render as a green patch can describe completely different physical states.

Landsat's swath is 185 kilometers wide at 30-meter resolution; a hyperspectral mission like EnMAP images a much narrower strip at similar resolution because it is recording so much more per pixel; a wide-swath instrument like MODIS trades detail for reach entirely, at 250-to-1,000-meter pixels across 2,330 kilometers. Each number is tuned to a different question, not a different quality grade, because a wider swath spreads the same collected signal across more ground and necessarily coarsens the result. No single satellite is built to answer all three.
